Construction of Martta, step by step
I'm constructing an CNC router with about 60cm of X/Y travel, and 40cm of Z
travel. It should be able to mill aluminum quite easily. Quite large wooden
structures will be my target also (like fish-tail joints used in drawers etc.)
Rapid speeds of over 1000 mm / min will be my goal for moving speeds.
To accomplish that,
motors and driver electronics need to be quite big. I'm not yet decided
which motors to use, but probably quite large steppers from OEM. Perhaps I'm
adding 4th axis for lathe-use. It all depends on motor prices really, as they
will be probly only parts that I have to buy as new... :)
Project started by getting aluminium parts as swap from friend. I did some
software for him to use with his robotic Geodimeters. Parts consist of large
aluminum frames and quite nice flat aluminum parts. I bought also 3 meters of
12mm / 3mm per turn trapez-bar to use for movements.

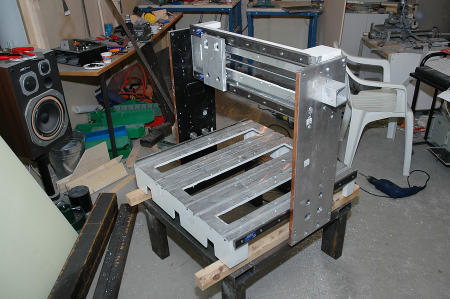

Router has basic framing ready. Frame is made from aluminium plates and castings. Frame has Hepco slides on X and Y axis, and all moving parts are supported by Hepco ball bearings.
Z-axis foundations laid out. Z-axis will be using "ball-bearing slide", it will
have about 35 cm's of movement. Z-axis plate will need cutting and attachment to
moving X/Y structure.
Y-axis trapez and ball-bearing fixed. It's moving quite nicely when turned by
power-drill. Motors will possibly be Nema 42 class motors with 9A current per
phase and maximum voltage of 140V. Drivers will be Italian RTA's, with 10A
/ 75V (so 750W) per axis. Each axis will have own power-supply of 3A, so the
power-supplies are really the weakest link in the electronics. Well, they can
be easily updated in future if more torque is really needed (UPDATE: I really
doubt that torque is not going to be a problem. In first tests motors easily
ruined my aluminium motor-coupling when axis jammed...)
First motor mount done. I welded it from iron, and it seems to be quite rigid. Also
driver problems solved - it needed NPN transistor between PC and the driver
board. It seems that RTA's GMD03 drivers read 0 if voltage is between 0 and -2,
and 1 if voltage is between +10-12 OR input is left open.
And because PC cannot generate such voltages from printer port (at least the
industrial PC I'm using cannot do them), I was forced to use transistors. Well,
I think I could have used pull-up resistors also, but transistors seem to work
just fine. I use the transistors to drive the input pin to ground-level, and
when transistor input is low, the pin is left open (=high Z state).
I'm able to get feeds of 4.5 m / min with Z axis :) And it has the
smallest motor, X and Y are much more bigger motors with hopefully more than
enough torque. At least the motors are "whirrling" nicely when driven freely.
At first it seemed that they woudn't work properly. The motion was wobbly and
shaky, and I guess there wasn't much of torque involved there. But after I
double checked the connections, and Mach2 setup parameters, I discovered the
"Minimum pulse width"-parameter. I increased that from 2us to 6us and wow -
problem solved and completely nice and smooth movements :)
Y and Z moving and working. With Y, rapids are not yet quite possible
due resonance - everything needs proper fixing before real tests can begin. But
basic movements are possible. It will definitely need better axis couplings
though. I may even buy them as new, they would cost about 20e / axis... Let's
see what happens.
All motors and axis fixed in place and working ! Speeds are very impressive,
but I don't really want to try maximums just yet. Mainly because I'm using
"rubber-pipe" type axis couplings for now. And I don't have limits installed
yet, and it would be quite catastrophic if some axis is driven too far and it
stalls the movement... I got a little hint about powers involved:
the couplings I made before were made
from aluminum, and they didn't last too long before they wore out. And it seems
that steel is much better for that kind of things anyway, the threads for
tightening nuts are much more durable in steel than in aluminum.
The next
thing I need is a holder for Bosch 600W router that I'm going to mount to the
mill. I think I'll just use my old holder from my
V1-version of CNC-router. At least I'll use it until I'm able to make bigger holder from aluminium.
First cuts made! Wood seems to cut very easily :) Aluminum seems to need
that all the bolts are properly in place - my Z axis is fixed with just 2
8mm bolts instead of 4 or 6 bolts needed for proper fixing... But wood speed
was very nice :)
DONE:
- Finish frame
- Get motors for 3+1 axis (4th as simple welding-motor for starters)
- 19.9.2004: Possible candidats for motors found, needs further planning and
calculations)
- 23.9.2004: Done, motors arrived. X and Y are NEMA 42-size motors, 9A
per phase and 120 V max voltage. Cost was 150 eur per motor, which
was quite reasonable for 42 size motors.Pictures
- Get driver electronics working
- 19.9.2004: Acuiring almost done, candidats found
- 20.9.2004: Acuiring done, acquired 3 stepper-drivers, 10A max each. Full
step, half step, 1/4 step and 1/8 step possible. Current limiting etc.
Manufacturer RTA, model GDM03. Also acuired 3 75V/3A power-supplies.
- 20.3.2004: First motion done Z axis moving at speeds of 4.5
meters / min, or about 75 mm / sec. More than enough for Z.
- Fix trapez-bars to the frame by ball bearings
- 19.9.2004: Done Y
- 13.11.2004: Done X and Z
TODO:
- Get and install some protection for wires
- Install electrical limiters
- Make better connections for transistors involved
- Take better pictures of the whole setup
